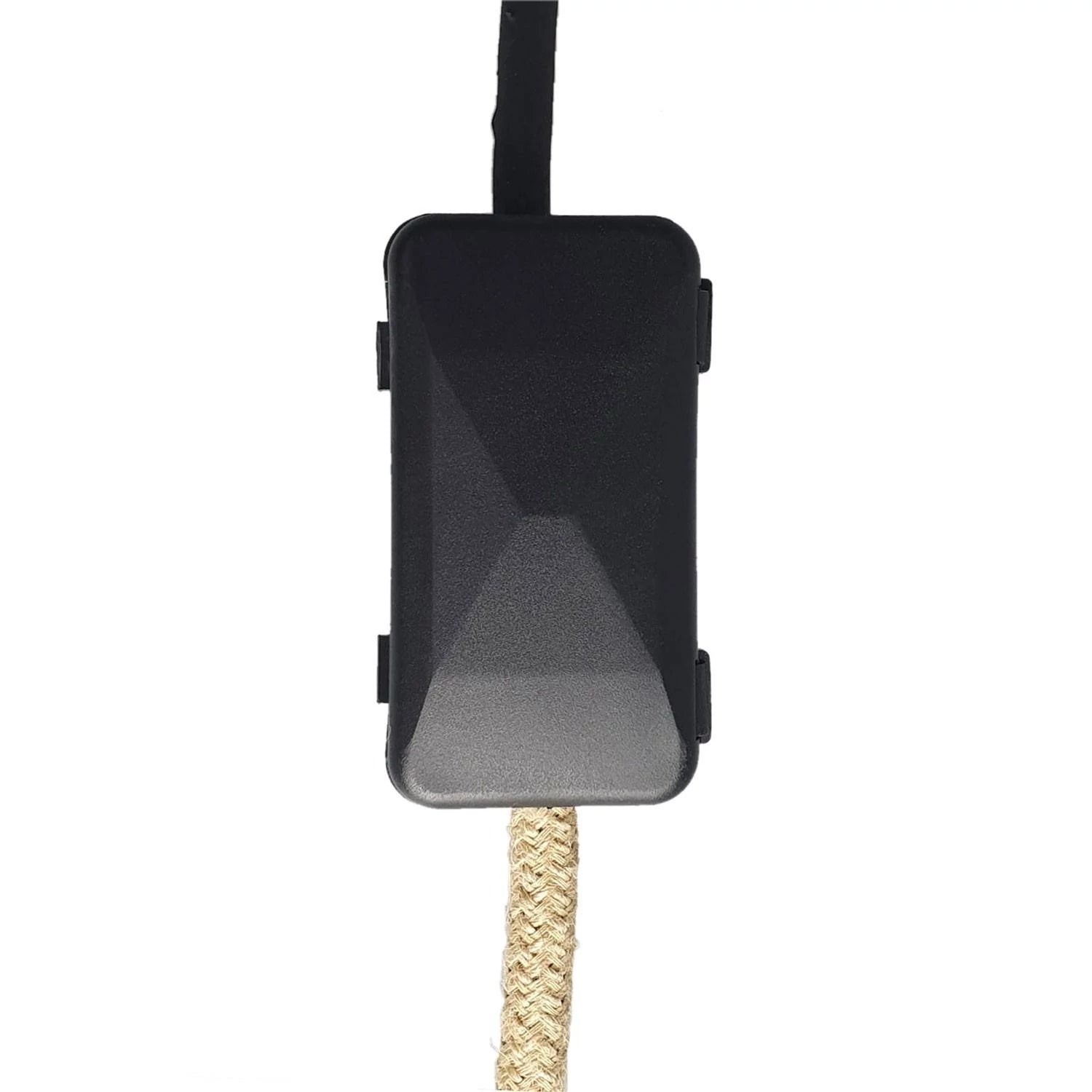

Connection set with cable protection box
SKU: WLB0963
€3,75€3,10 Incl. VATExcl. VAT
11 in stock
- 30 dagen zichttermijn *
- verzending vanaf €4,50. Gratis vanaf €75
- vóór 15:00 uur besteld = vandaag verzonden *
Size chart

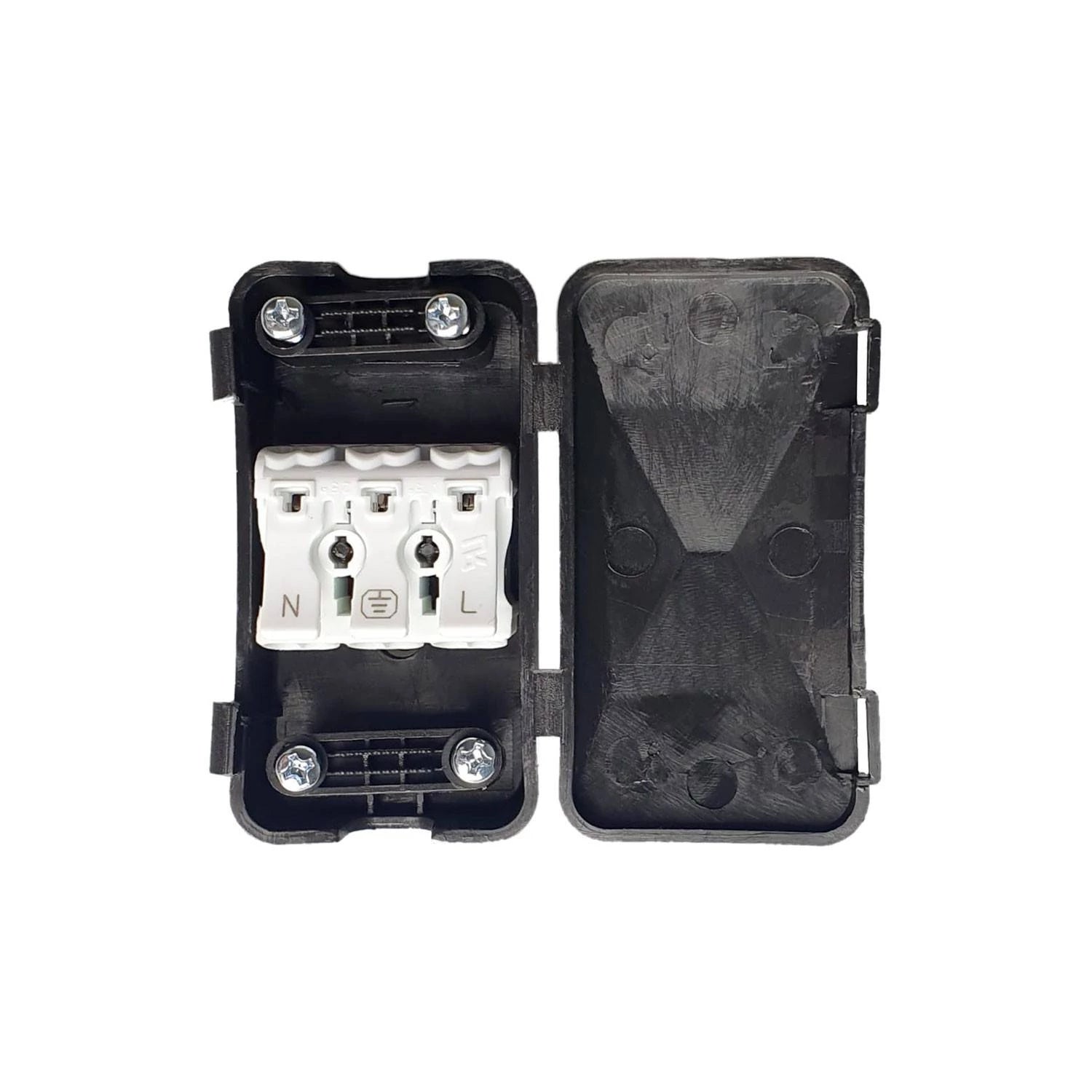

The plastic housing has an insulating function, protecting the connectors inside. It is also equipped with two cable clamps, one on each side, which ensure cable safety and strength in case of external stresses.
This set is also perfect for discreetly concealing cable connections in, for example, a suspended ceiling. This way, you can replace a traditional ceiling cap with a recessed variant and enjoy a sleek, minimalist look.
Specifications:
- Length: 62 mm
- Width: 34 mm
- Height: 21 mm
- 1 connector - 2 ports per pole
- Number of ports per side: 6
- Permissible cable cross-section from 0.75 mm2 to 2.5 mm2
- Rated voltage: 450 V
- Rated current: 24 A
- Maximum permissible ambient temperature according to EN 60998: 85° C
- Suitable for class 1 devices.
