Product form

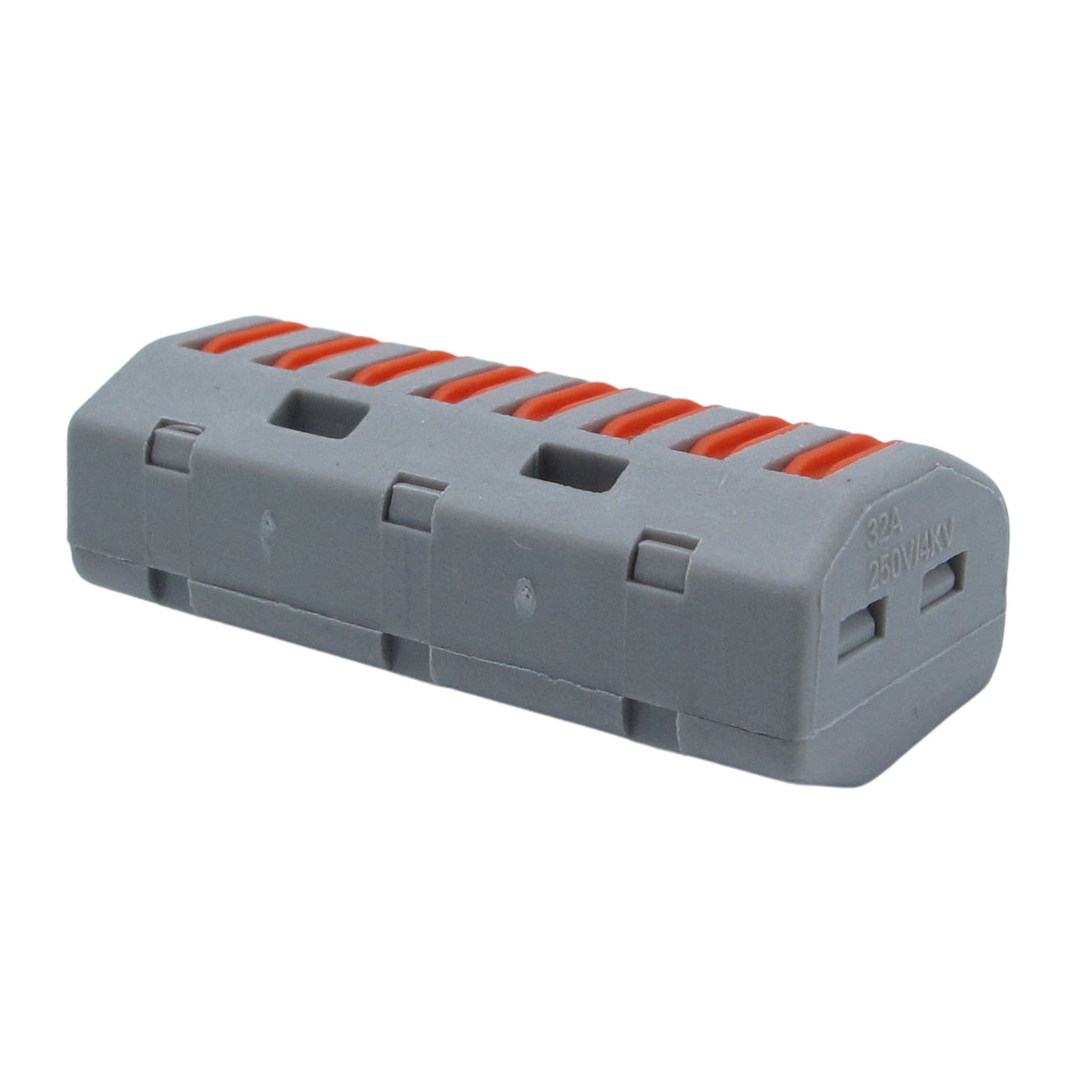

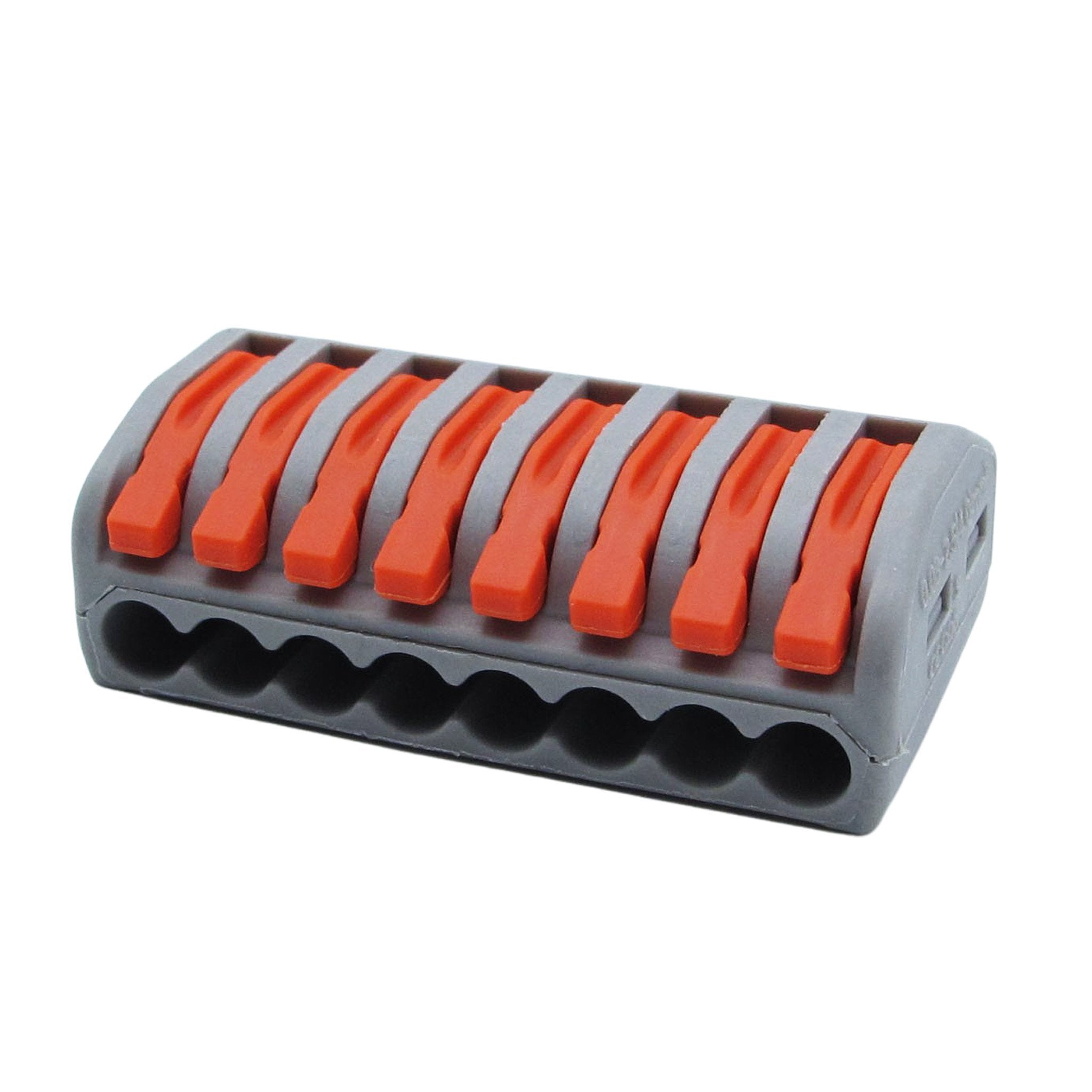

Connector 8-pole / 8-way

With tis connector you connect max. 7 lights together. For example, to connect multiple wires in a ceiling cap. Read more

€1,25€1,03 Incl. VATExcl. VAT

159 in stock Ordered before 3pm = shipped today*

      With tis connector you connect max. 7 lights together. For example, to connect multiple wires in a ceiling cap.

      Size chart

      This cord, cable or welding clamp is a simple and fast way to connect multiple lamps without screws. Think for example of connecting multiple (installation) wires in a ceiling cap. Unlike a traditional splice clamp, this clamp is resealable. By putting the tabs up, the wires can easily be disconnected again, allowing you to use the clamp more often.

      This clamp is suitable for connecting up to 8 wires (or 7 lamps) to each other (in 1 clamp). Are you connecting fewer lamps? Then you can leave a channel empty. Smaller 2-pole, 3-pole and 5-pole clamps are also available.

      How to use?
      Strip the wire to a sufficient distance of approx. 9-10 mm (you can also measure it from the bottom of the clamp, see photo) and insert it into the clamp. There, the wire makes contact with the other clamped wires and a connection is created between them.

      Make sure that you use a separate terminal for each colour of wire. Never connect different colours to the same wire terminal.

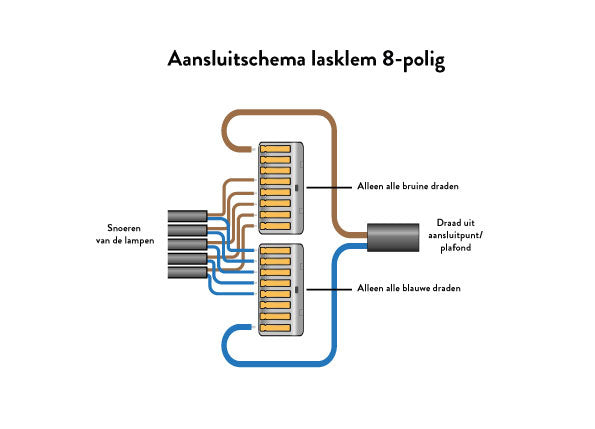

      Kynda Light aansluitschema - 8-polige lasklem

      The clamp can clamp both flexible and rigid wires. Suitable for conductors with a diameter of 0.08 to 2.5 mm².

      The Benefits
      Resealable
      Easy to use
      Substitute for terminal block
      Suitable for 8 installation wires
      Suitable for minimum 0,08 and maximum 2,5mm² wires
      Can also be used as a welding cap (to cap power wires)
      Suitable for flexible and rigid conductors
      Suitable for 12V, 24V and 230V
